[sane-devel] Epson ET-2711 ("ecotank")

Thu May 6 21:07:11 BST 2021

tried these ones, working fine:
scanimage --mode Color --resolution 150dpi > test.pnm
scanimage --mode Grayscale --resolution 150dpi > test.pnm
results:

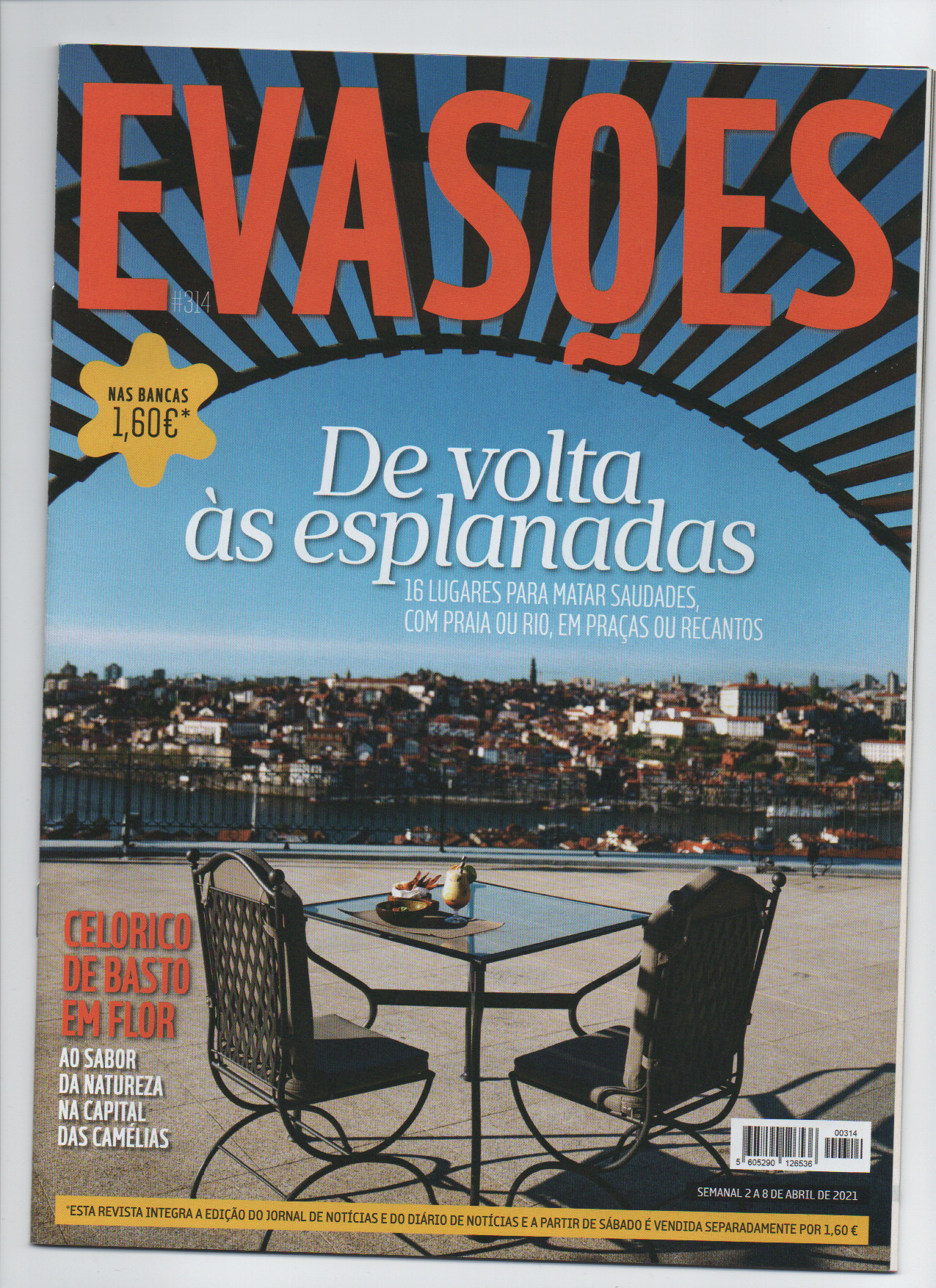

https://i.postimg.cc/VYkQffvS/test-color150.png

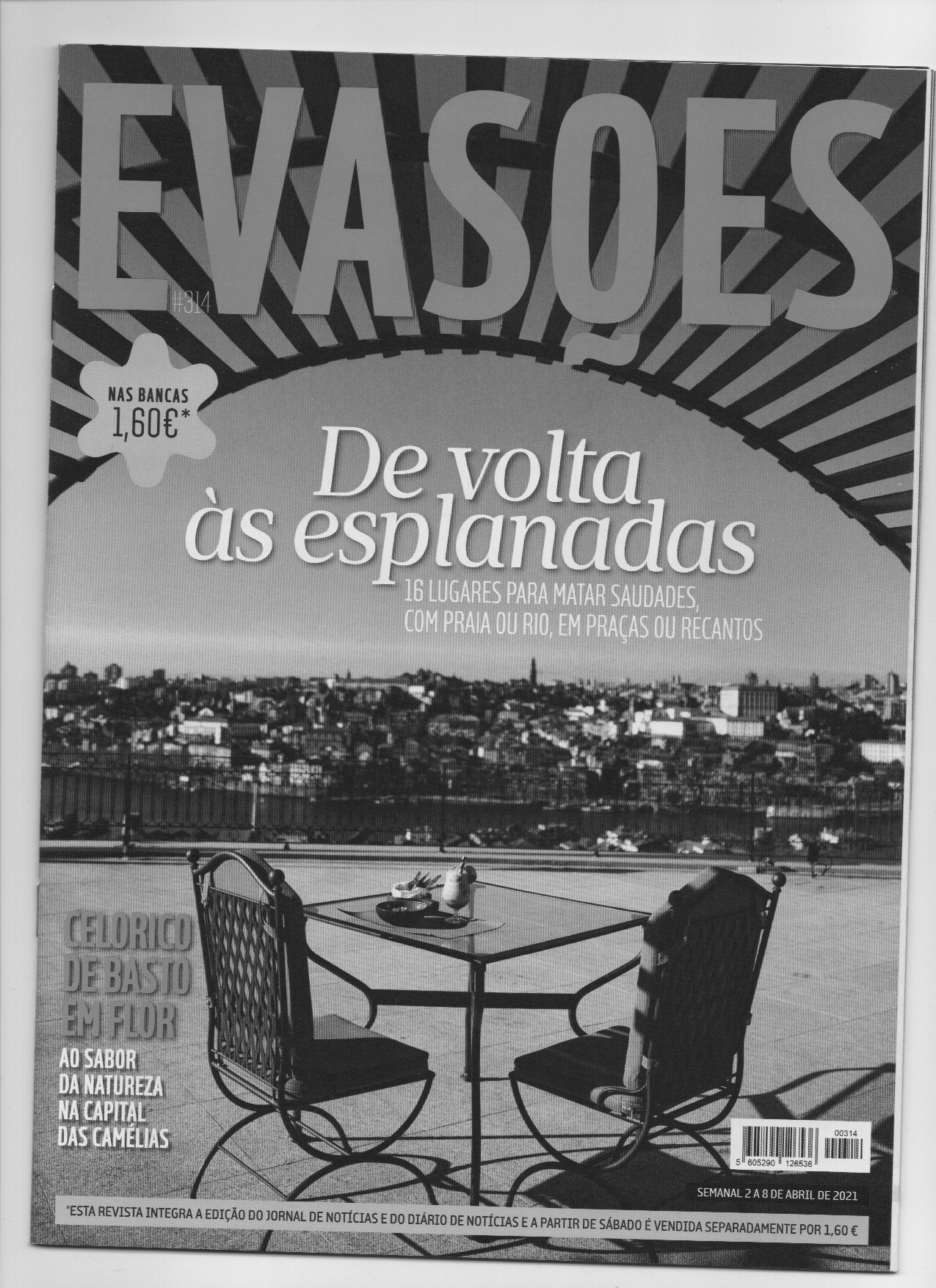

https://i.postimg.cc/BqVyJ2Ry/test-grayscale150.png

btw, i now found and installed sane package as well, which comes with
xscanimage plugin for gimp (which i never heard of), which indeed
works fine - so it seems to be a bug (coredump related?) only related
to xsane? i really wonder why is that happening...

On 5/6/21, Thierry Huchard <thierry at ordissimo.com> wrote:
> scanimage --mode=color --resolution=300 > test.pnm
> scanimage --mode=grey --resolution=300 > test.pn
>
> Get all option
> scanimage -A
>
> Le 6 mai 2021 21:38:34 GMT+02:00, Paulo Silva <nitrofurano at gmail.com> a
> écrit :
>>guest at ryzen3:~$ sudo apt install --reinstall xsane
>>[sudo] password for guest:
>>Reading package lists... Done
>>Building dependency tree
>>Reading state information... Done
>>The following packages were automatically installed and are no longer
>> required:
>>  ardour-data ardour-video-timeline calf-ladspa g++-9
>>gnome-flashback-common gxplugins-data harvid libcdio18 libcfitsio8
>>libcollada-dom2.4-dp0
>>  libcurl3-gnutls:i386 libcwiid1 libgdbm-compat4:i386 libgdbm6:i386
>>libgnome-panel0 libicu66 libieee1284-3:i386 libilmbase24 libjson-c4
>>libmxml-bin
>>  libmxml-dev libmxml1 libmysqlclient21:i386 libnghttp2-14:i386
>>libnspr4:i386 libnss3:i386 libopenexr24 libopenvdb6.2 libpci3:i386
>>libperl5.30:i386
>>  libpoppler-glib8:i386 libpoppler102:i386 libpoppler97 libproj15
>>libprotobuf17 libqhull7 libqm-dsp0 librtmp1:i386 libsnmp35:i386
>>libssh-4:i386
>>  libtracker-control-2.0-0 libtracker-miner-2.0-0 libvamp-sdk2v5
>>libwebsockets16 mencoder python-backports.functools-lru-cache
>>python-bs4 python-html5lib
>>  python-lxml python-soupsieve python-webencodings tracker
>>tracker-extract tracker-miner-fs vamp-plugin-sdk xjadeo
>>Use 'sudo apt autoremove' to remove them.
>>0 upgraded, 0 newly installed, 1 reinstalled, 0 to remove and 2 not
>> upgraded.
>>Need to get 453 kB of archives.
>>After this operation, 0 B of additional disk space will be used.
>>Get:1 http://ftp.usf.edu/pub/ubuntu groovy/universe amd64 xsane amd64
>>0.999-9ubuntu1 [453 kB]
>>Fetched 453 kB in 2s (214 kB/s)
>>(Reading database ... 851458 files and directories currently installed.)
>>Preparing to unpack .../xsane_0.999-9ubuntu1_amd64.deb ...
>>Unpacking xsane (0.999-9ubuntu1) over (0.999-9ubuntu1) ...
>>Setting up xsane (0.999-9ubuntu1) ...
>>Processing triggers for mime-support (3.64ubuntu1) ...
>>Processing triggers for hicolor-icon-theme (0.17-2) ...
>>Processing triggers for gnome-menus (3.36.0-1ubuntu1) ...
>>Processing triggers for man-db (2.9.3-2) ...
>>Processing triggers for bamfdaemon (0.5.3+18.04.20180207.2-0ubuntu2) ...
>>Rebuilding /usr/share/applications/bamf-2.index...
>>Processing triggers for desktop-file-utils (0.24-1ubuntu4) ...
>>guest at ryzen3:~$ xsane
>>Segmentation fault (core dumped)
>>guest at ryzen3:~$
>>
>>
>>On 5/6/21, Paulo Silva <nitrofurano at gmail.com> wrote:
>>> (errata: mazagine cover, not folder! :D )
>>>
>>> On 5/6/21, Paulo Silva <nitrofurano at gmail.com> wrote:
>>>> scanned a magazine folder from that "scanimage > test.pnm" command line
>>>> result is 1bitdepth, https://i.postimg.cc/5bT4yFvh/evasoes.png - i
>>>> don't know if that is because some missing arguments to scanimage,
>>>> some misconfiguration, or only scanning in this mode
>>>>
>>>> On 5/6/21, Paulo Silva <nitrofurano at gmail.com> wrote:
>>>>> worked fine, test.pnm appeared in the current bash directory! :)
>>>>>
>>>>> tested with this for now, converted the result with imagemagick and
>>>>> uploaded at postimages - https://i.postimg.cc/762NmGVY/test.png
>>>>>
>>>>> On 5/6/21, Thierry Huchard <thierry at ordissimo.com> wrote:
>>>>>> scanimage > test.pnm
>>>>>>
>>>>>> Le 6 mai 2021 20:48:54 GMT+02:00, Paulo Silva <nitrofurano at gmail.com>
>>>>>> a
>>>>>> écrit :
>>>>>>>guest at ryzen3:~$ xsane
>>>>>>>Segmentation fault (core dumped)
>>>>>>>guest at ryzen3:~$
>>>>>>>
>>>>>>>On 5/6/21, Paulo Silva <nitrofurano at gmail.com> wrote:
>>>>>>>> nope.... :(
>>>>>>>>
>>>>>>>> GIMP Message
>>>>>>>> Plug-in crashed: "xsane"
>>>>>>>> (/usr/lib/gimp/2.0/plug-ins/xsane/xsane)
>>>>>>>> The dying plug-in may have messed up GIMP's internal state. You may
>>>>>>>> want to save your images and restart GIMP to be on the safe side.
>>>>>>>>
>>>>>>>> On 5/6/21, Thierry Huchard <thierry at ordissimo.com> wrote:
>>>>>>>>> Le 2021-05-06 20:39, Paulo Silva a écrit :
>>>>>>>>>> sorry, i forgot that i switched it off... :D
>>>>>>>>>>
>>>>>>>>>> guest at ryzen3:~$ sudo usermod -G $USER lp
>>>>>>>>>> [sudo] password for guest:
>>>>>>>>>> guest at ryzen3:~$ scanimage -L
>>>>>>>>>> device `epsonscan2:ET-2710 Series:esci2:usb:ES016E:4419' is a
>>>>>>>>>> EPSON
>>>>>>>>>> ET-2710 Series flatbed scanner
>>>>>>>>>> guest at ryzen3:~$
>>>>>>>>> It should work now !
>>>>>>>>>>
>>>>>>>>>>
>>>>>>>>>>
>>>>>>>>>> On 5/6/21, Paulo Silva <nitrofurano at gmail.com> wrote:
>>>>>>>>>>> guest at ryzen3:~$ sudo usermod -G $USER lp
>>>>>>>>>>> [sudo] password for guest:
>>>>>>>>>>> guest at ryzen3:~$ scanimage -L
>>>>>>>>>>>
>>>>>>>>>>> No scanners were identified. If you were expecting something
>>>>>>>>>>> different,
>>>>>>>>>>> check that the scanner is plugged in, turned on and detected by
>>>>>>>>>>> the
>>>>>>>>>>> sane-find-scanner tool (if appropriate). Please read the
>>>>>>>>>>> documentation
>>>>>>>>>>> which came with this software (README, FAQ, manpages).
>>>>>>>>>>> guest at ryzen3:~$
>>>>>>>>>>>
>>>>>>>>>>>
>>>>>>>>>>>
>>>>>>>>>>>
>>>>>>>>>>> On 5/6/21, Thierry Huchard <thierry at ordissimo.com> wrote:
>>>>>>>>>>>> Le 2021-05-06 20:01, Paulo Silva a écrit :
>>>>>>>>>>>>> guest at ryzen3:~$ sudo scanimage -L
>>>>>>>>>>>>> [sudo] password for guest:
>>>>>>>>>>>>> device `epsonscan2:ET-2710 Series:esci2:usb:ES016E:4419' is a
>>>>>>>>>>>>> EPSON
>>>>>>>>>>>>> ET-2710 Series flatbed scanner
>>>>>>>>>>>>> guest at ryzen3:~$
>>>>>>>>>>>> sudo usermod -G $USER lp
>>>>>>>>>>>> scanimage -L
>>>>>>>>>>>>
>>>>>>>>>>>>>
>>>>>>>>>>>>>
>>>>>>>>>>>>> On 5/6/21, Thierry Huchard <thierry at ordissimo.com> wrote:
>>>>>>>>>>>>>> Test :
>>>>>>>>>>>>>> sudo scanimage -L
>>>>>>>>>>>>>>
>>>>>>>>>>>>>> Le 6 mai 2021 19:11:10 GMT+02:00, Paulo Silva
>>>>>>>>>>>>>> <nitrofurano at gmail.com>
>>>>>>>>>>>>>> a
>>>>>>>>>>>>>> écrit :
>>>>>>>>>>>>>>> hi Thierry,
>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>> thanks for the instructions, all mentioned steps done, but
>>>>>>>>>>>>>>> when
>>>>>>>>>>>>>>> i
>>>>>>>>>>>>>>> open
>>>>>>>>>>>>>>> xsane from Gimp (File:Create:XSane:"Device dialog..."),
>>>>>>>>>>>>>>> after
>>>>>>>>>>>>>>> "scanning for devices", i'm getting this:
>>>>>>>>>>>>>>> Gimp Message
>>>>>>>>>>>>>>> Plug-in crashed: "xsane"
>>>>>>>>>>>>>>> (/usr/lib/gimp/2.0/plug-ins/xsane/xsane)
>>>>>>>>>>>>>>> The dying plug-in may have messed up GIMP's internal state.
>>>>>>>>>>>>>>> You
>>>>>>>>>>>>>>> may
>>>>>>>>>>>>>>> want to save your images and restart GIMP to be on the safe
>>>>>>>>>>>>>>> side.
>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>> so what do you think i could do for checking out what is
>>>>>>>>>>>>>>> going
>>>>>>>>>>>>>>> wrong
>>>>>>>>>>>>>>> here, perhaps like getting logs, running specific tools,
>>>>>>>>>>>>>>> some
>>>>>>>>>>>>>>> configuration, etc.?
>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>> thanks in advance,
>>>>>>>>>>>>>>> Paulo
>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>> On 5/6/21, Thierry Huchard <thierry at ordissimo.com> wrote:
>>>>>>>>>>>>>>>> Le 2021-05-06 17:07, Paulo Silva a écrit :
>>>>>>>>>>>>>>>>> hi!
>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>> it seems that the scanner from Epson ET-2711 (
>>>>>>>>>>>>>>>>> https://www.epson.co.uk/products/printers/inkjet-printers/for-home/ecotank-et-2711
>>>>>>>>>>>>>>>>> ) is still not supported out of the box
>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>> i can't enter at sane's irc (totally forgot what is
>>>>>>>>>>>>>>>>> nickserv
>>>>>>>>>>>>>>>>> register
>>>>>>>>>>>>>>>>> about and stuff like that...), so i'm answering here what
>>>>>>>>>>>>>>>>> http://www.sane-project.org/mailing-lists.html asks:
>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>> "scanimage --version" says:
>>>>>>>>>>>>>>>>> scanimage (sane-backends) 1.0.31-debian; backend version
>>>>>>>>>>>>>>>>> 1.0.31
>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>> "lsb_release -a" says:
>>>>>>>>>>>>>>>>> LSB
>>>>>>>>>>>>>>>>> Version:	core-11.1.0ubuntu2-noarch:printing-11.1.0ubuntu2-noarch:security-11.1.0ubuntu2-noarch
>>>>>>>>>>>>>>>>> Distributor ID:	Ubuntu
>>>>>>>>>>>>>>>>> Description:	Ubuntu 20.10
>>>>>>>>>>>>>>>>> Release:	20.10
>>>>>>>>>>>>>>>>> Codename:	groovy
>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>> "lsusb | grep Epson" says:
>>>>>>>>>>>>>>>>> Bus 003 Device 004: ID 04b8:1143 Seiko Epson Corp.
>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>> so, i'm curious to know how soon is this scanner going to
>>>>>>>>>>>>>>>>> be
>>>>>>>>>>>>>>>>> supported, and on what can we help for that...
>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>> Hi Paulo,
>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>> If you want to use it in resins you have several options:
>>>>>>>>>>>>>>>> 1 - Update sane
>>>>>>>>>>>>>>>> sudo add-apt-repository ppa:sane-project/sane-git
>>>>>>>>>>>>>>>> sudo apt-get update
>>>>>>>>>>>>>>>> sudo apt install libsane libsane1 libsane-common sane-utils
>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>> 2 - Install sane-airscan
>>>>>>>>>>>>>>>> 3 - Install espon drivers
>>>>>>>>>>>>>>>> http://support.epson.net/linux/en/epsonscan2.php
>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>> For USB :
>>>>>>>>>>>>>>>> 1 - Install espon drivers
>>>>>>>>>>>>>>>> http://support.epson.net/linux/en/epsonscan2.php
>>>>>>>>>>>>>>>> 2 - Install ipp-usb and use sane-airscan or sane-escl
>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>> Thierry
>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>> thanks in advance,
>>>>>>>>>>>>>>>>> Paulo
>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>
>>>>>>>>>>>>>> --
>>>>>>>>>>>>>> Envoyé de mon appareil Android avec Courriel K-9 Mail.
>>>>>>>>>>>>>> Veuillez
>>>>>>>>>>>>>> excuser ma
>>>>>>>>>>>>>> brièveté.
>>>>>>>>>>>>
>>>>>>>>>>>
>>>>>>>>>
>>>>>>>>
>>>>>>
>>>>>> --
>>>>>> Envoyé de mon appareil Android avec Courriel K-9 Mail. Veuillez
>>>>>> excuser
>>>>>> ma
>>>>>> brièveté.
>>>>>
>>>>
>>>
>
> --
> Envoyé de mon appareil Android avec Courriel K-9 Mail. Veuillez excuser ma
> brièveté.
